Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LJV
  • Model Number: RE1602CC1-H01-022
  • Max. Current: 10mA
  • Max. Voltage: 5VDC,
  • Mechanical Life: 30,000 cycles
  • Pulse and detent: 15/30,20/20,9/18
  • Output type: incremental
  • Operation temperature: -30 degree C to 80 degree C
  • Rotation angle: 360 degree

Packaging & Delivery

Packaging Details 455*285*325mm 2000pcs/carton
Delivery Time 10 days

16mm incremental type IP67 rotary encoder;



Company Information

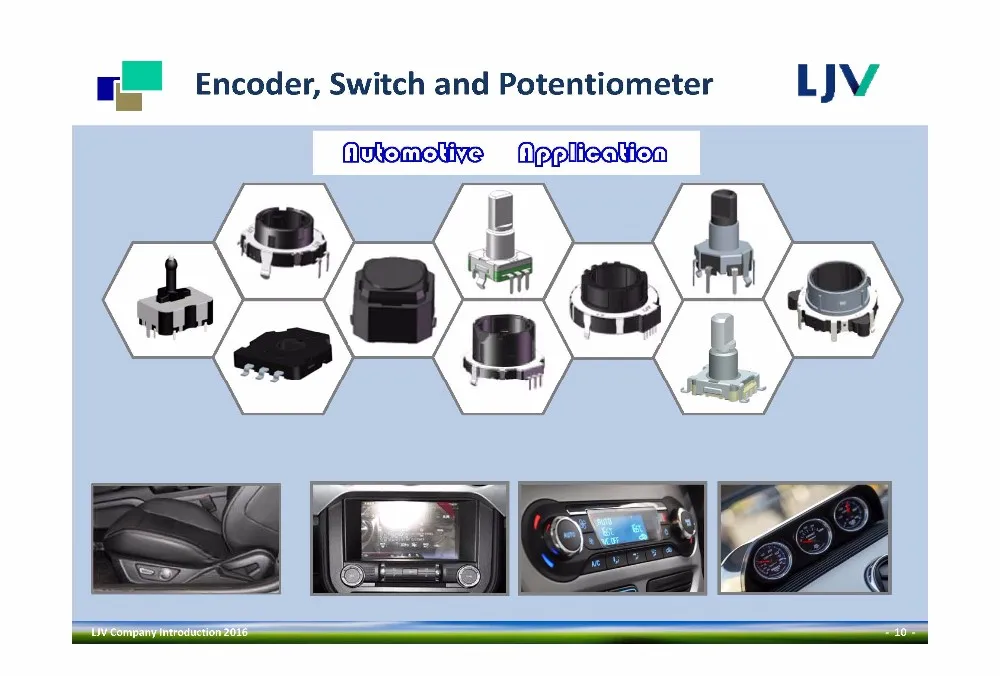

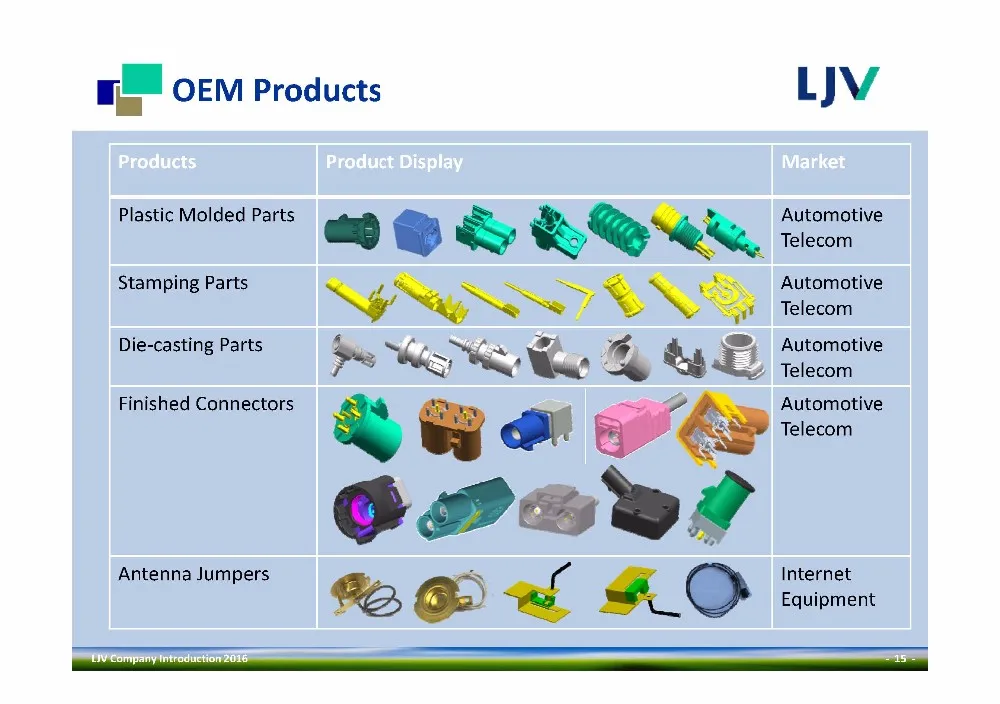

We Dongguan LJV Industry Investments Co.,Ltd is specializing in the manufacturing of encoders, potentiometers, switches and metal parts like precision hardware,plastic part,die-casting accessories.


We've got more than 20 year's manufacturing experiences. and our Producucts can be widely used on the products of interphone, car audio and video, acoustics, instruments and apparatuses, medical equipment, sports apparauses, etc



Our advantages:



1. Competitive price.
2. Quick delivery time.
3. Good service.
4. Certificates: RoHS/ISO9001/14001/TS16949.



Product Description

  RE16 Series Rotary Encoder specifications




 1. Mechanical Characteristic:

1.1 Shaft Wobble:   0.7xL/30 mm P-P max L-Shaft length

1.2 Total rotational angle: 360degree
1.3 Rotational torque:  20~200gf.cm;
1.4 Push-pull strength:   Pull:8.0 kgf Push:8.0 kgf Min at 10 sec

1.5 Click Torque :   20 to 150 gf.cm

1.6   Number of Detents(click) :   18detents Step angle:20°±2°; 20detents Step angle:18°±2° or  30detents Step angle:12°±2°

1.7  Shaft play in axial direction:  0.4mm Max

1.8  Shaft play in rotational wobble: 5°Max

2. Electrical Characteristic:
2.1 Output signal :   A,B 2 signals
2.2 Rated Power:    DC 5V,A,B lead 5mA Max,C lead 10mA Max
2.3 Insulation Resistance:  More than 100MΩ at DC 250V
2.4 Voltage proof:  1 minute at AC 300V
2.5 Contact resistance between terminals : 1ΩMax

2.6 Resolution:  9pulses/360°; 20pulses/360° or  15pulses/360°

3. Endurable Characteristic:
3.1 Operating temp. range: -30°C to 80°C
3.2 Rotational life: 30,000±200cycles

3.3  Soldering Heat Characteristic:

       dipping in solder:260℃±5℃ or less,within 3S or  Solder by hand:300℃±5℃ or less,within 3S

4.  Switch characteristics

4.1  Switch Action: 550±250gf

4.2  Travel of Switch: 1.8±0.5 mm

4.3  Rated Power: DC 5V 10mA Max.

4.4  Switch Life: 15,000±200 cycles(1.8 Travel)





Packaging & Shipping



Terms Of ShippingShipping MethodTerms of PaymentLead Time Of ProductsMOQ
Ex-work
FOB Shenzhen
CIF
(Negotiable)
By Ocean & By AirT/T12 Days
(Based on you exact quantity)
1000pcs
(Negotiable)
By International ExpressPaypal
UPSWestern Union
FedExMoney Gram
DHLL/C
TNT
Our Services



FAQ

 Q1. What do RP, RE & RS stand for? and what does RP09 stands for, for example?

FAQ

A: RP means rotary potentiometer, RE for rotary encoder, RS for rotary switch,

The RP09 means rotary potentiometer whose housing width is 9.5mm, and so on.



Q2. What is your terms of packing?
A: Generally, we pack our rotary potentiometers in cystosepiment and brown carton with label mark attached to it. If you have special requirement, please tell us and we will check if we could customize it for you.

Q2. What is your terms of payment and delivery?
A:  100% T/T or Paypal before production with shipping term of EXW, of course, we could deliver goods via FEDEX, DHL or UPS according to your request at a comparative low price.

Q3. How about your delivery time?
A: Generally, rotary potentiometer will take around 15 days for the mass production, and about 4 days for samples.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the rotary potentiometer sample cost and the courier cost.

Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test of rotary potentiometer before delivery

Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price of rotary potentiometer to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,  no matter where they come from.





If you have any questions, just feel free to contact Ivy:
Mobile/whats app: +86-139 2582 1052
QQ: 1712111690
